Vestel Washing Machine Fault Codes

Bush washing machine error codes and spare parts

Fault or error codes used in Vestel washing machines we believe are made by Vestel of Turkey and sold in the UK from mid-2012 onwards. These codes relate to Vestel F4 Series washing machine WMDFX714W and others but they can apply to many brands.

Before you start any investigation of the fault or even remove the lid of the washing machine or washer dryer please read and fully understand this article in full and pay particular attention to the safety and information notices at the bottom of this page as they contain extremely important information!

Please remember to support our site by buying Vestel spares from our spare part store if they available as many Vestel spare parts are very hard to source and, if you decide that you really need an engineer please support the local repairers that help make this site possible, you can find an engineer using the engineer search facility.

IMPORTANT NOTE: Vestel makes appliances for many companies, Argos, Currys and many more and there are different series of macines using different codes so these codes will not apply to all models, please search other Vestel made machine fault codes as they can vary

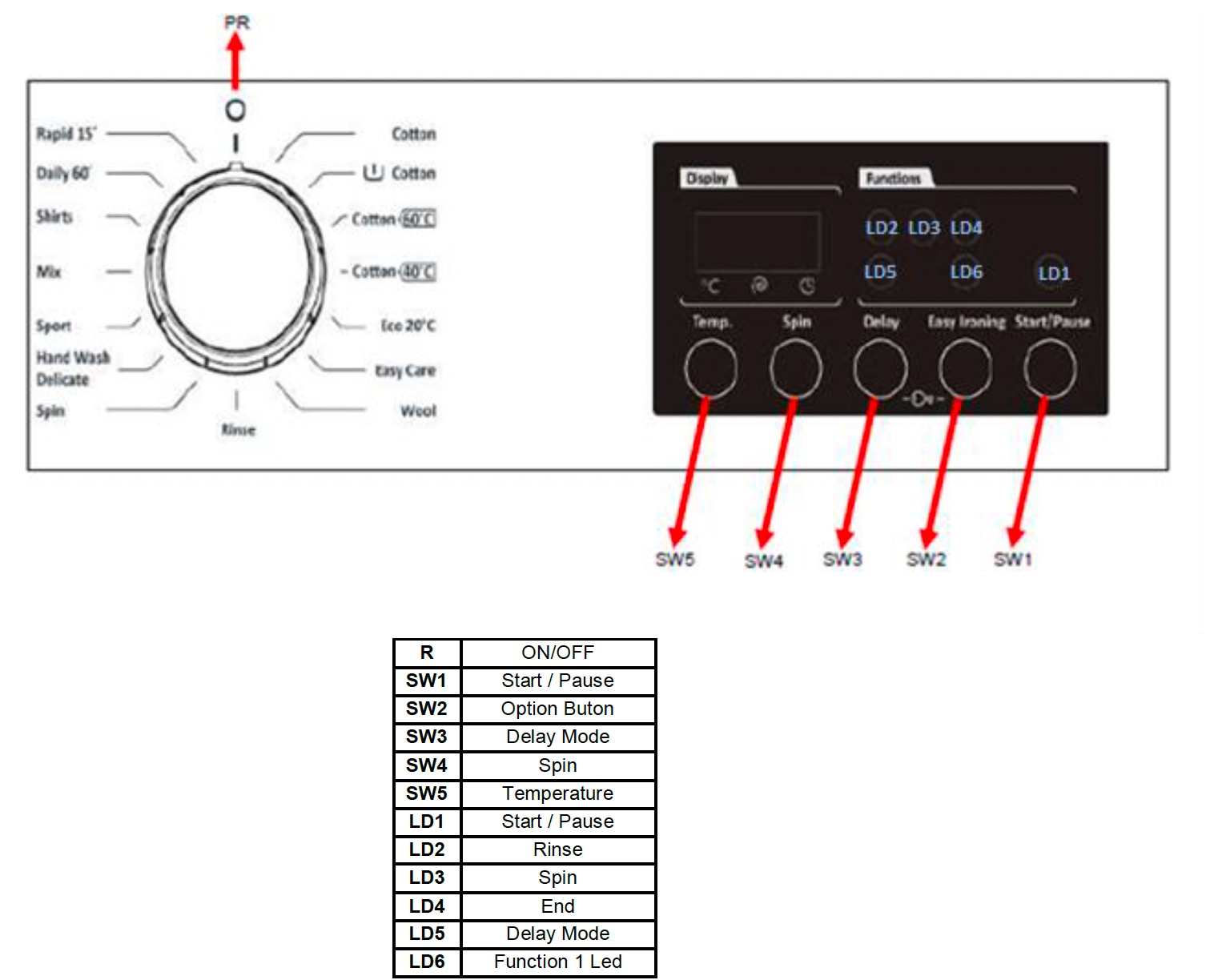

The models that these codes apply to will have a control panel like this:

Vestel washing machine control pane, F4 Series

  Vestel Washing Machine Fault Codes

Like other fault codes these written for washing machine repairers and not for the general public by UK Whitegoods and they assume a certain level of competence on the part of the user in diagnostic routines. We have added some notes to try to assist you in determining the nature of the fault you have but, you will still need to investigate each failure on its own merits. For more help and advice on fault finding on a washing machine please refer to our washing machine fault finding guide from this link before you begin.

Please check that any Vestel or Vestel made washing machine spares recommended are suitable for use on your particular model and production code or serial number. If you are unsure about the suitability of any spare part please ask to ensure that you get the correct spares for your washing machine.

Please, don’t guess or assume as spares can be altered on a production run with the same model number having several different alternative components used.

If you struggle or cannot find the appropriate fault code that you need for your machine please ask in the forums and the gusy there will do what they can to help and locate the meaning of the fault code you need

E01

Washing machine door lock has failed to operate or respond

The washing machine has detected an error with the door safety lock or interlock preventing operation.

  • Check door is closed and latched correctly
  • Check wiring
  • Check door lock



E02

Water filling time out or failure

The washing machine has failed to fill with water in a reasonable time.

  • Check that the water supply is on
  • Check the water inlet valve
  • Check the pressure sensor



E03

Not drained in time allowed – washing machine fails to drain water
  • Check that filter is not blocked or obstructed
  • Check drain hose is clear of any blockage or obstruction
  • Check wiring to drain pump
  • Check drain pump is not defective
  • Check level sensor or switch
  • Check wiring to level sensor



E04

Washing machine has detected an overfill situation

This error code can be caused by overfoaming which is a result of overloading (see this article) or by overdosing or, incorrect detergent as the pressure sensor will falsely read that there is too much water in the washing machine.

Also check the pressure sensor and that the machine has not actually overfilled with water.

  • Check for overfoaming or over soaping
  • Check the air chamber and the pressure switch hose
  • Check water level sensor
  • Check wiring to water pressure sensor
  • Check connections to water level sensor
  • Check main electronic controller



E05

NTC or heater failure detected

This is a code that essentially points to some sort of a problem with the heating system but it doesn’t tell you the pecific component that has failed.

  • Check the wash heater (most common reason for this error)
  • Check the NTC sensor, that’s the small electronic thermistor on the heater
  • Check wiring to heater and thermistor



E06

Motor error or failure

The washing machine has detected an error on the washing machine’s main drive motor circuit but, like other errors cannot pimpoint he exact location or nature of the fault.

  • Check motor connector block
  • Check motor carbon brushes where fitted
  • Check wiring
  • Check tacho connections
  • Check motor



E07

Configuration error

No details on this one and it is uncommon but we suspect that this is an electronics issue

  • Check the main control module



E08

Motor triac protector error or failure

The washing machine has detected an error on the washing machine’s main drive motor circuit in relation to teh overheat protector within the motor itself.

  • Check motor connector block
  • Check motor carbon brushes where fitted
  • Check wiring
  • Check tacho connections
  • Check motor



E09

Voltage error

This error code is caused by a problm with the mains supply most often but can be a couple of other things

  • Check the mains input voltage etc
  • Check the anti-interference filter
  • Check the main control module



E10

Washing machine pressure sensor error

This error code the pressure sensor in the washing machine failing to respond

  • Check the pressure sensor
  • Check the wiring to the sensor
  • Check for any blocakge in the sensor feed hose
  • Check the main control module



  More Washing Machine Help

Should you need more help and guidance please use the links from this article as most of them will help you to understand your washing machine a lot better and probably very much help you in diagnosing the fault you have. Of course there are many other articles on the site that will also help you do this.

In addition you can post in our washing machine forums after registering but please do pay heed to the information below before doing so and read the guides, they are there to help you. But if you are in any doubt at all or don’t think you are up to diagnosing the fault yourself please use the engineer search to find a local washing machine engineer.

You must understand certain things before you begin or attempt any repairs on your own and we want to make these points very, very clear to anyone that decides to investigate one of these or any other washing machines:

  • We are not responsible for your safety, you are and by using this guide you accept that and accept that any damage that you may cause and work undertaken is entirely at your own risk.
  • We will advise the common causes of the fault codes but we cannot guarantee that any parts or work recommended will resolve the issue. It is entirely your responsibility to diagnose your particular problem and resolve it.
  • We are not responsible for you buying spares that do not resolve the problem, this is down to your own diagnosis not ours.
  • No warranty is inferred, implied or given.

You also have to be aware that fault or error codes are not a “magic bullet”, they will not tell you what the problem is, they will only offer you an indication of where the problem lies and they are no substitute for good old fashioned diagnostic skills. You can find out more about what fault codes actually tell you in this article. So please be well aware that, even with this new found knowledge you will still have to actually be capable of investigating and diagnosing the problem and this means adhering to basic appliance safety for working on them.

Please do note that manufacturers can and do change fault codes without notice and we cannot guarantee that these error codes will apply to your particular model as all codes apply to a wide range of appliances and not normally any one specific model. To determine if these fault codes do apply to your particular washing machine model please post a request to confirm this in the forums.
